CD Grounding Studs

cd pin diagram

General Information

Special Orders: Other diameters, lengths, and materials are available by special order (minimum quantities may apply).

Contact: Call Cutlass for part numbers not shown.

Note:

Typically used as a ground attachment point in electrical control cabinets, computer consoles, transformer frames or on any metal fabrication where a common ground (earth) attachment point is required. The studs are available in two distinct styles.... 1) As a standard 1/4" push on type connector or 2) As a threaded type with an enlarged weld base providing a large upper contact area for attachment of lugs. Both types can be welded with standard CD stud welding equipment. The push on style can be welded with the Cutlass Classic, Clipper 8 or 10, or equivalent. The threaded type requires a Clipper 10 or equivalent CD stud welder.

Push On Type

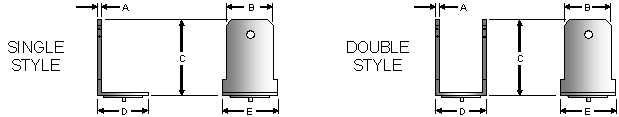

cdground diagram
Material
Single Mild Steel
(Copper Plate)
2931-0001 0.032"
(0.8mm)
0.250"
(6.35mm)
0.460"
(11.8mm)
0.375"
(9.5mm)
0.320"
(8.2mm)
Stainless Steel 2932-0001
Aluminum Alloy 2933-0002
Double Mild Steel
(Copper Plate)
2931-0004 0.438"
(11.1mm)
Stainless Steel 2932-0004
Aluminum Alloy 2933-0004
Threaded Type
cdgrthread
Material
Mild Steel
(Copper Plate)
2901-0011 1/4-20 UNC .059" 0.50""
(12.7mm)
0.125"
(3.0mm)
Mild Steel
(Copper Plate)
2901-0012 0.75"
Stainless Steel 2902-7167 0.59"
Mild Steel
(Copper Plate)
2931-0009 M6 16.0mm
Stainless Steel 2932-7166
Mild Steel
(Copper Plate)
2931-0010 M8
