Clipper Charge Battery Operated

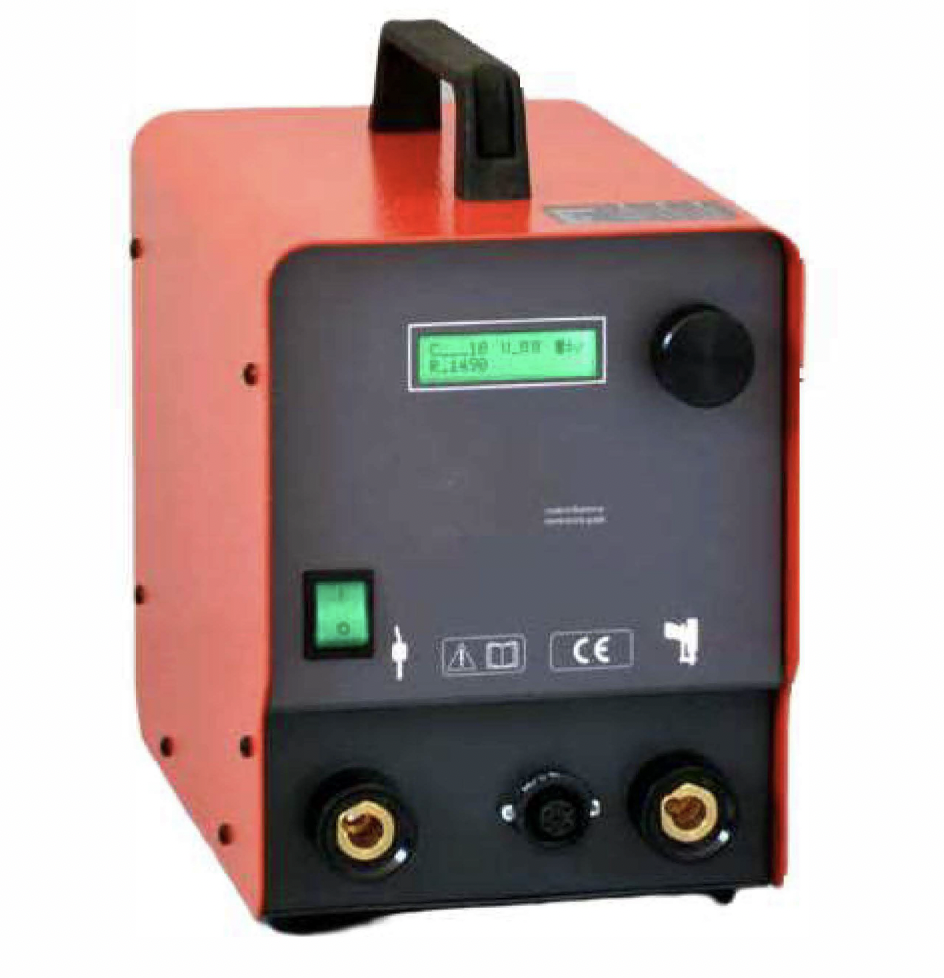

Temporary Image - Clipper Charge Battery Operated CD Stud Welding System

The Clipper Charge Battery Operated CD Stud Welding System is a portable, powerful, and reliable solution for contractors and shipyards. Designed to eliminate the need for extension cords and power source limitations, it is perfect for on-site applications. Contact the experts at Cutlass Fasteners, Inc. for support and technical advice.

Part Number: LBS-090-CHARGE-(T or B)

Key Features

  • Battery-powered or 110V operation
  • Lightweight design at only 25 lbs
  • Welds steel, stainless steel, and aluminum studs (6-32 to 3/8")
  • Performs up to 2,800 welds on a single charge
  • Weld rate of 20 studs per minute
  • Built-in cooling fan and easy-to-read LCD screen
  • Single-knob operation for simplicity
Technical Specifications
Details Part Number
Model Clipper Charge
Controller Dimensions 11" H x 8" W x 12" L
Controller Weight 25 lbs (11.3 kg)
Power Supply 120/240 Volt, 50/60 Hz
Weld Mode Contact
Charge Range 60 to 200 VDC
Stud Capacity Steel/Stainless Steel/Aluminum (6-32 to 3/8")
Weld Rate Up to 20 studs/minute
Cables Weld/Control Cable: 21 ft; Ground Cable: 16 ft
Gun & Cable Weight 14 lbs (6 kg)
Shipping Weight 48 lbs (20 kg)
Included Components

Included Components

  • Clipper Charge Controller
  • PKM-1B Weld Gun and Cable Set
  • Twin Ground Clamps
  • Weld Chucks or Collets for two stud sizes
  • Single Leg Foot Piece
  • Charging Cord
  • Allen Keys
  • Operation, Parts, and Maintenance Manual
