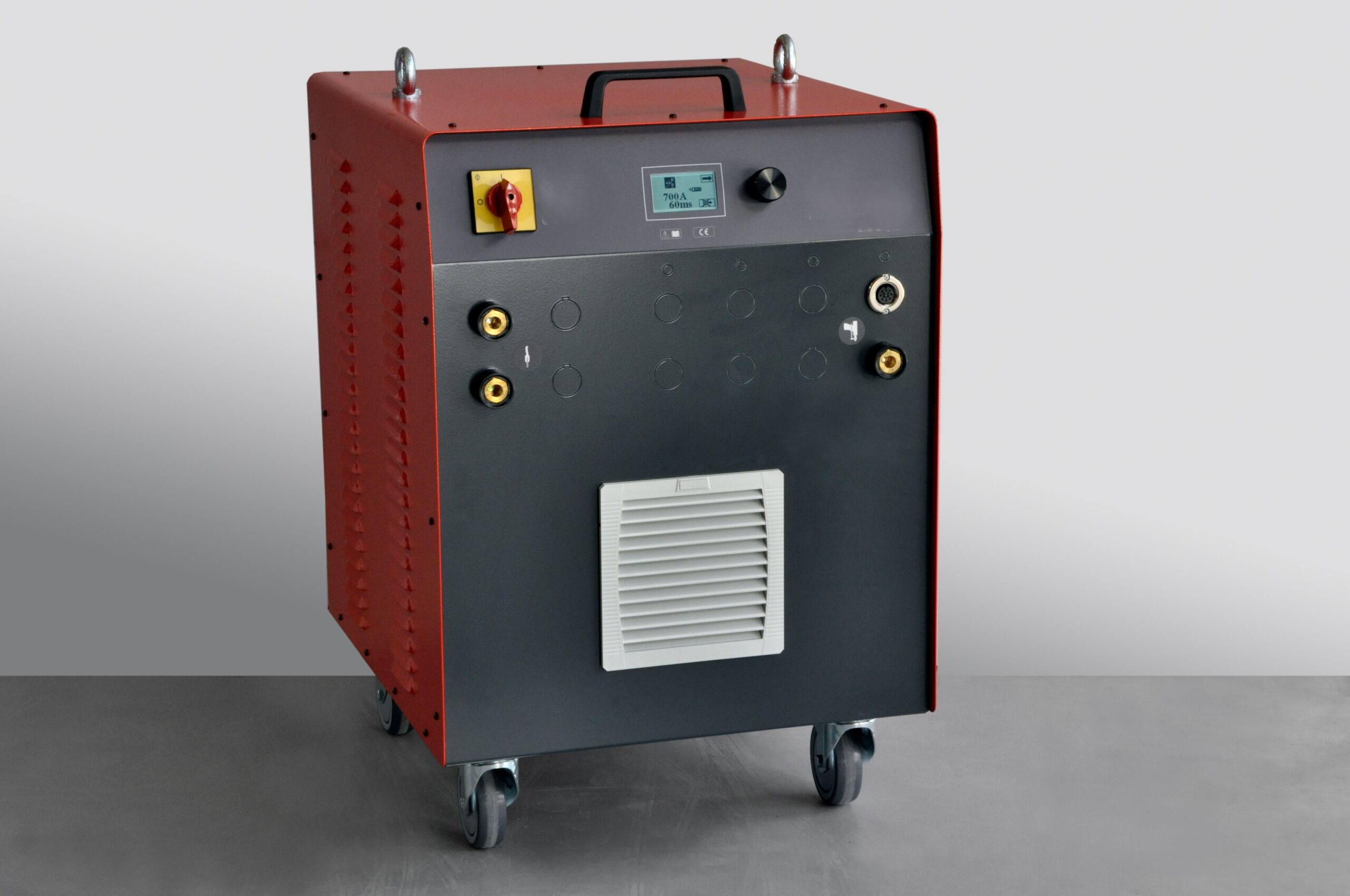

Pro ARC 2200i

PRO-I-2200 picture

Part Number

Maximum Welding Capacity

2 units: up to 3150A, capable of welding 1” (25mm) studs

The PRO ARC 2200i offers expanded capabilities with higher amperage and larger stud sizes. Whether using Drawn Arc or Short Cycle, this unit delivers reliable, high-performance welding for steel, stainless steel, or aluminum, even in tough conditions.

Key Features

  • Welding Process: Drawn Arc or Short Cycle Welding Processes (with or without Shielding Gas)
  • Materials: Steel, Stainless Steel, Aluminum
  • Stud Size: 6-32 – 7/8” (2mm -22mm)
  • Amperage: Adjustable 100A-2100A
  • Welding Time: Adjustable 1-1500ms
  • Power Supply: 3Ph 460V, 63A
  • Weight: 179lbs (81kg) on casters
  • Memory: Stores up to 59 customizable welding programs
  • Monitoring: Welding parameter monitoring and documentation
  • Generator-Compatible: Optimized for use with a generator
  • Expandable Power: Can connect to another PRO ARC i Unit for additional power

Accessory for This Model

PRO-SPLIT BOX

Pro Split Box

The PRO SPLIT BOX is a versatile accessory designed for use with the PRO ARC i (Arc and Short Cycle) and PRO C (Capacitor Discharge) series of machines. It enables up to four guns to be connected to a single unit, each with unique parameters for optimized efficiency.

Key Features:

  • Multi-Gun Connection: Supports up to 4 guns per unit
  • Parameter Control: Each gun can be configured with its own welding parameters
  • Increased Efficiency: Saves setup time and improves overall workflow
  • Compatibility: Works with both PRO ARC i and PRO C series machines

Precision and Power: CNC Stud Welding Machines in Action

Discover the advanced technology of our CNC stud welding machines, built for high-precision, efficiency, and reliability. Whether for large-scale production or quick setups, our machines are designed to meet the toughest industrial demands.
