ARC 700 / 900

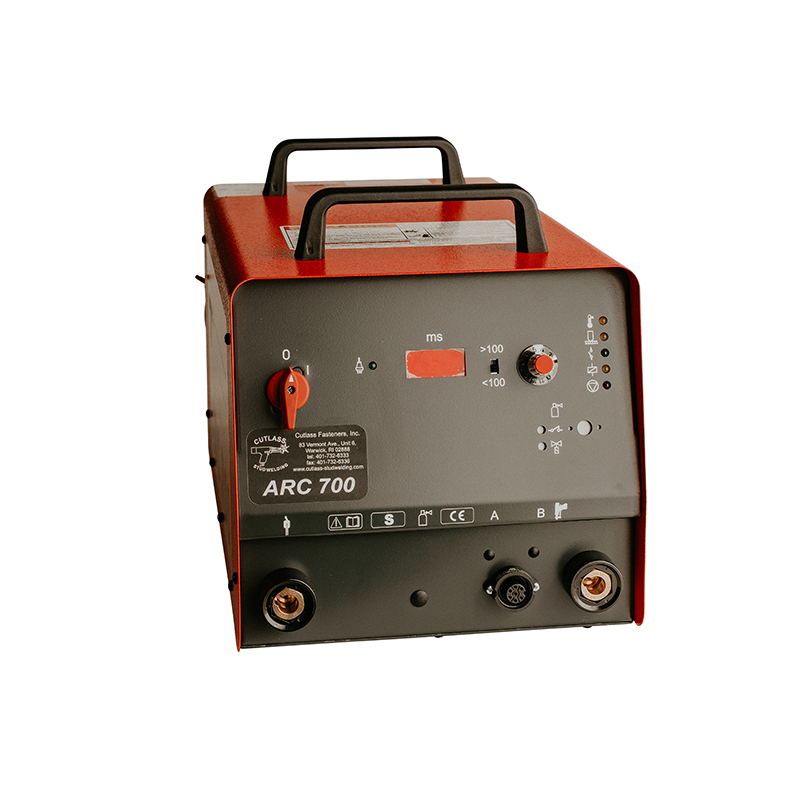

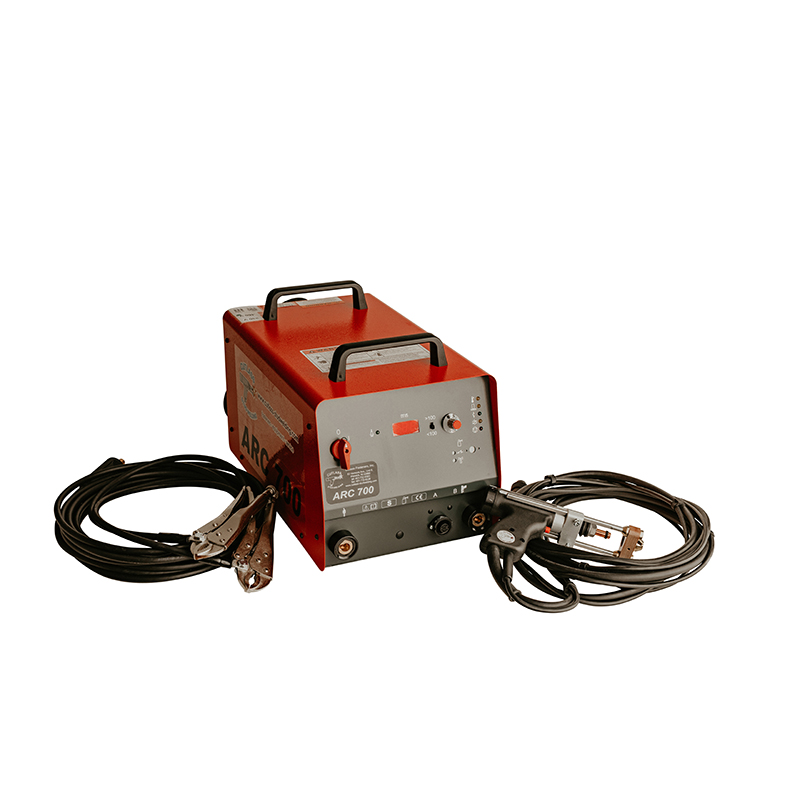

The Cutlass ARC 700 and 900 Stud Welding Systems were designed and manufactured to answer customer demands for a compact, portable, self contained Power Source / Timer Controller suitable for factory or site conditions. They are capable of welding in Drawn Arc or Short Cycle mode.

Key Features

  • Solid-State System: Phase-controlled current up to 400 amps.
  • Precise Time Control: Adjustable from 5 to 350 milliseconds for accurate welding.
  • Weld Gun Options: Available with the PHM-12 Weld Gun (for drawn arc with ferrules) or the PHM-10 Weld Gun (for short cycle).
Technical Specifications
Specification
Model Part Numbers
COMPLETE DRAWN ARC SYSTEM (PHM-12)
COMPLETE SHORT CYCLE SYSTEM (PHM-10)
COMPLETE SYSTEM GAS (PHM-12)

CSS-40
CSS-40A
CSS-40G
90-30-3415

CSS-41
CSS-41A
CSS-41G
90-30-3425
Controller Part Numbers
PHM-10 SHORT CYCLE weld gun
PHM-12 DRAWN ARC weld gun
#2 Twin Ground Cable 16ft.

90-10-3311
80-35-2712
90-50-3010
Operating Mode Drawn Arc / Short Cycle
Stud Capacity 1/8" - 1/2" RB (3mm - 12mm)
Weld Base Diameter
1/8" - 1/2" FB (3mm - 12mm)
Weld Base Diameter
Power Requirements 230/460 Volts (50/60 Hz) Three Phase
Fusing 60/30 Amps
Output Up to 700 Amps RMS Up to 900 Amps RMS
Weld Gun Cutlass PHM-10 SHORT CYCLE or PHM-12 DRAWN ARC Weld Gun complete with footpiece, adjustable legs and 16 foot combination weld and control cables.
Ground Cable 16 foot with ground clamp
Dimensions and Weight
Dimensions (WxHxL) 11.0"x10.0"x17.75"
(280x250x450mm)
Controller 80lbs (36kg) 84lbs (38kg)
Gun and Cables 12lbs (6kg)
Gun (Working Weight) 2lbs (1kg)
Ground Cable 12lbs (6kg)
Total Shipping Weight 120lbs (55kg) 124lbs (57kg)
